You can edit and customize the logon screen.
To edit the logon page settings
On the Settings icon, click Edit Logon Page Settings.
This displays the following screen:

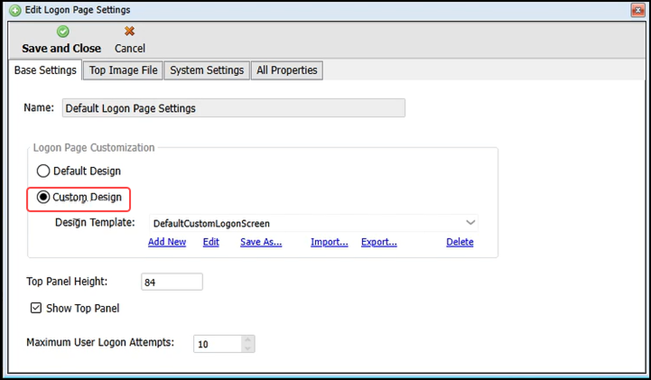

Select Custom Design.

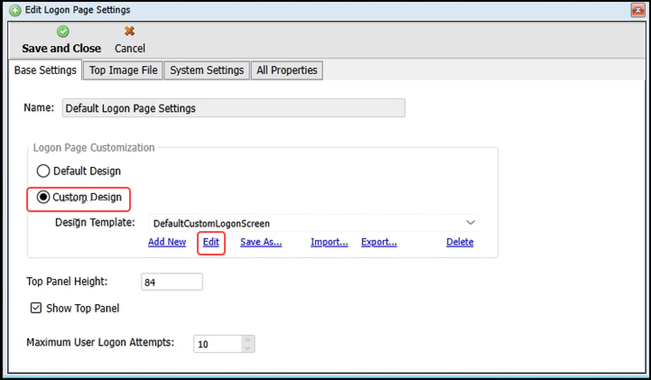

Click Edit.

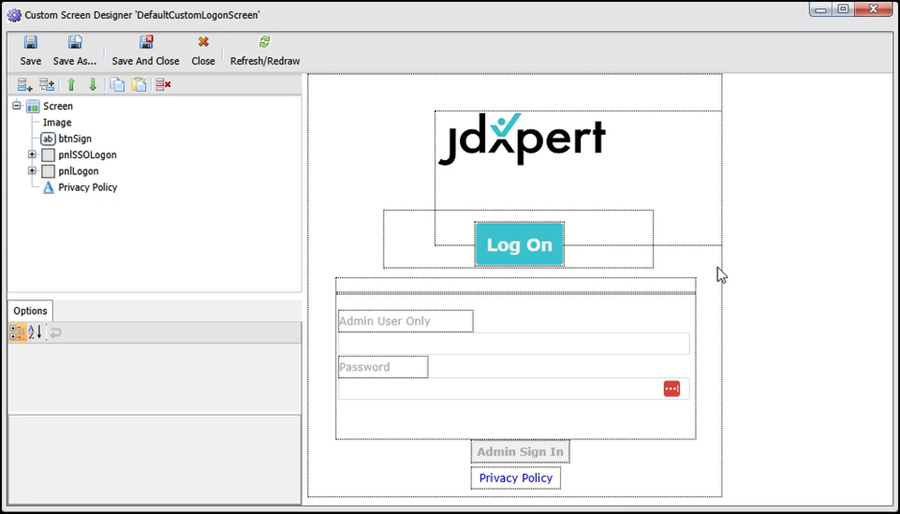

This displays the logon screen:
You can resize the screen size for better visibility as shown:

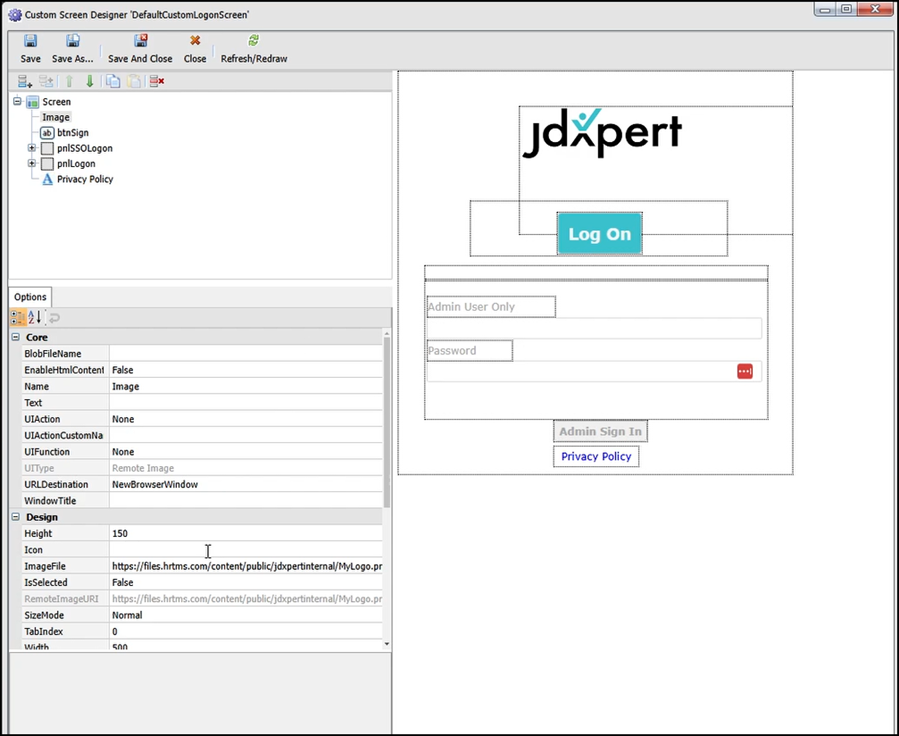

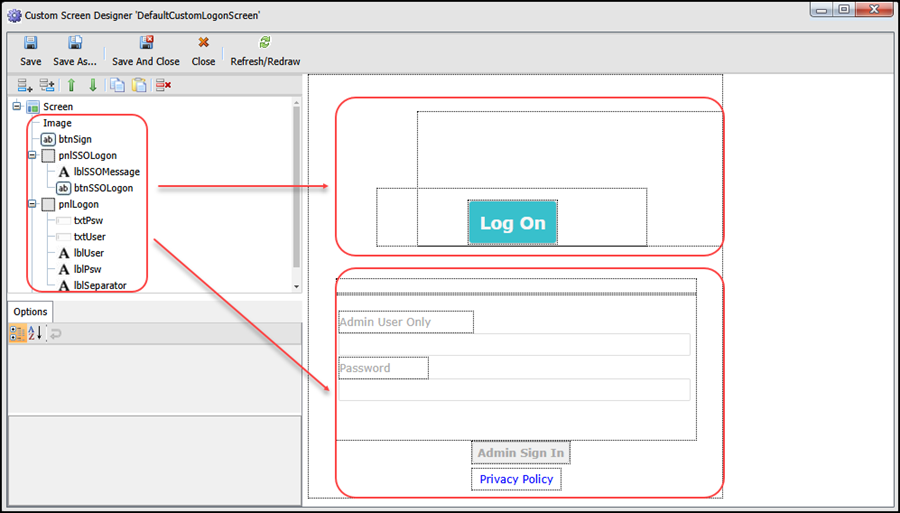

Expand all nodes in the left pane to view all elements on the screen.
To edit the core elements
Select an element in the right pane to view the configuration in the left pane.

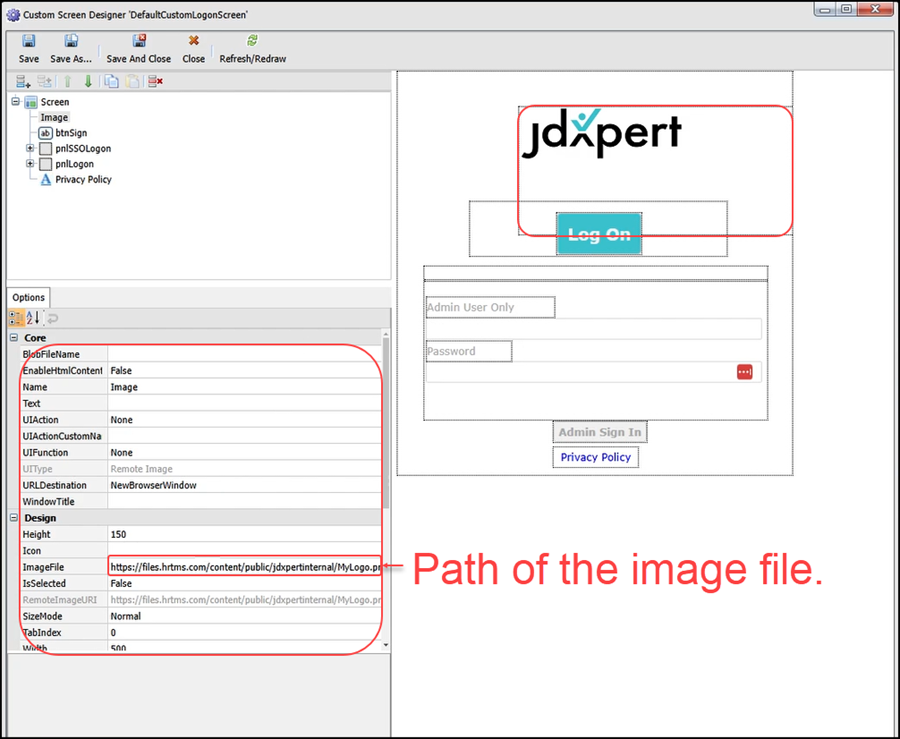

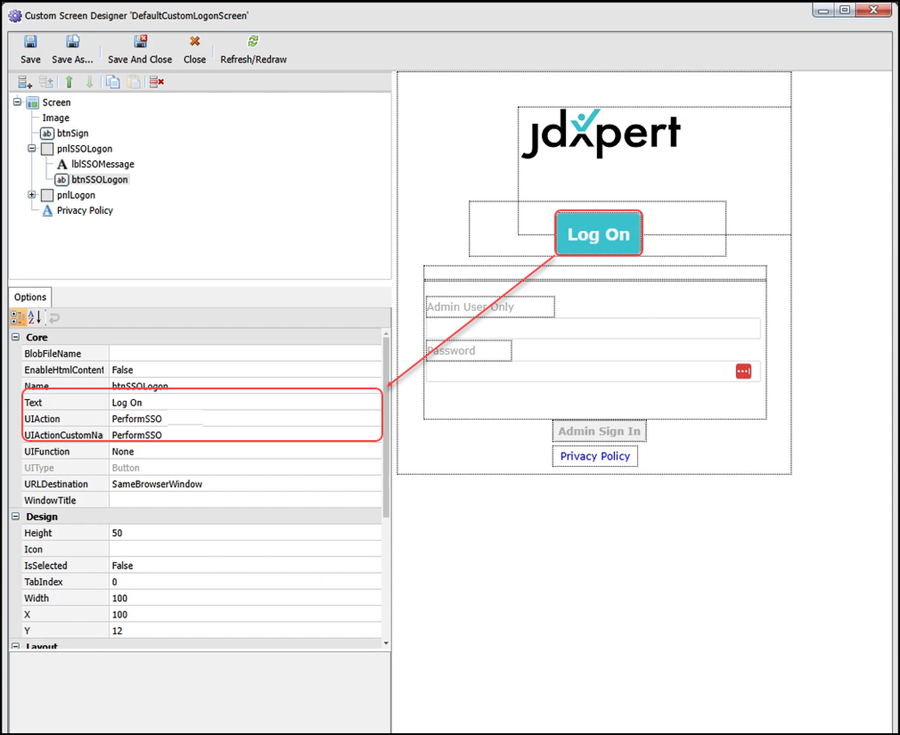

For example, select the logo in the preview pane.
Or select the logo in the preview pane:
You can update the settings of these elements in the left pane.

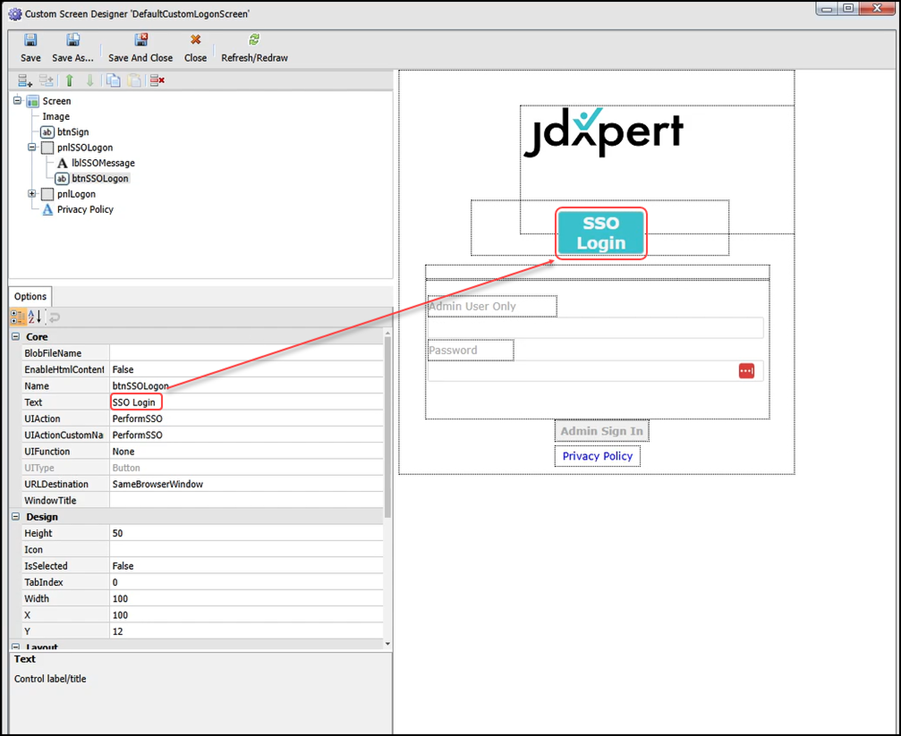

For example, Log On is changed to SSO Login.
To change the X, Y coordinates and width of a button
Select the logo and update the X, Y coordinate, and width.

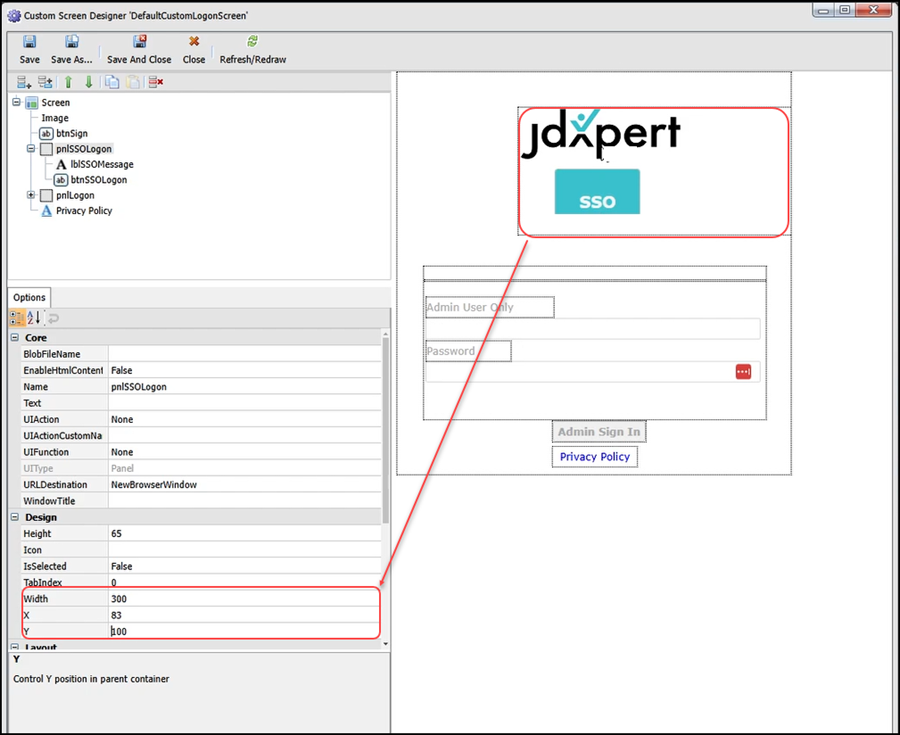

Select the container containing the logo and change the X, Y coordinates to change the position of the logo.
To update the admin and password settings

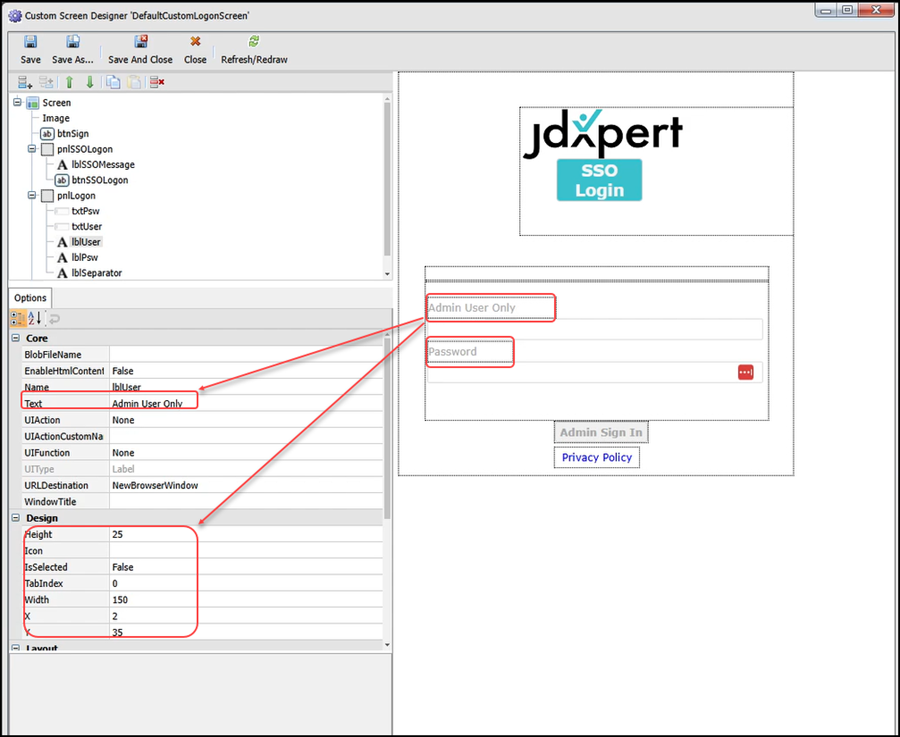

Select the Admin and Password fields, and update the settings in the left pane:
To add a new text in the form
You should use a label instead of a text box, as text boxes are not editable.

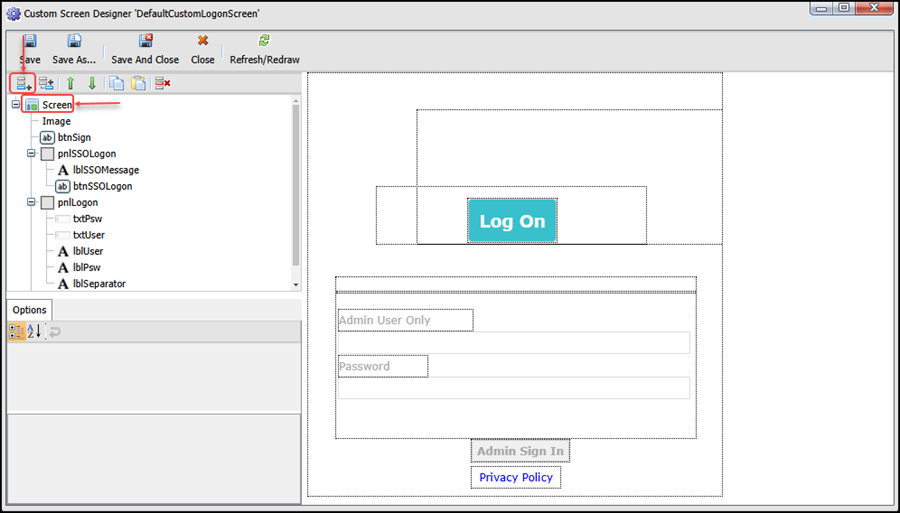

Select the Screen node, and click Add.

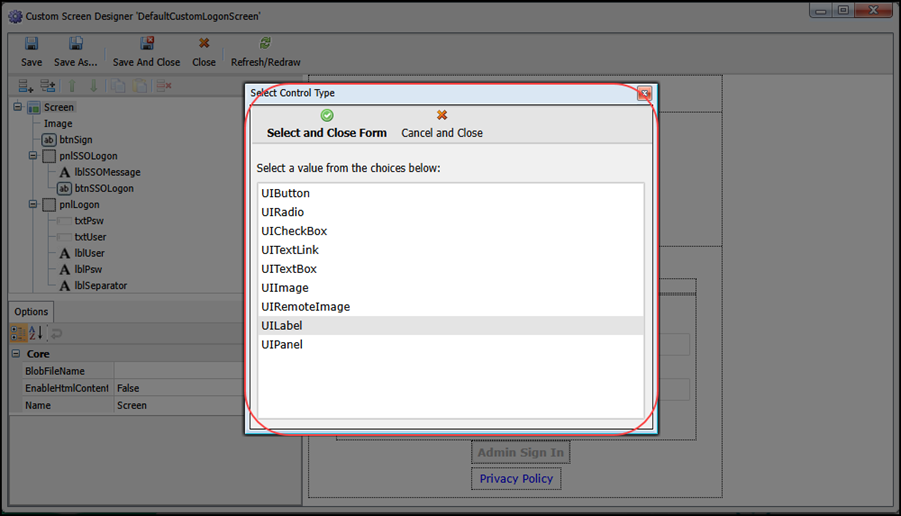

This displays the list of controls as shown:
Select UILabel, and click Select and Close Form.

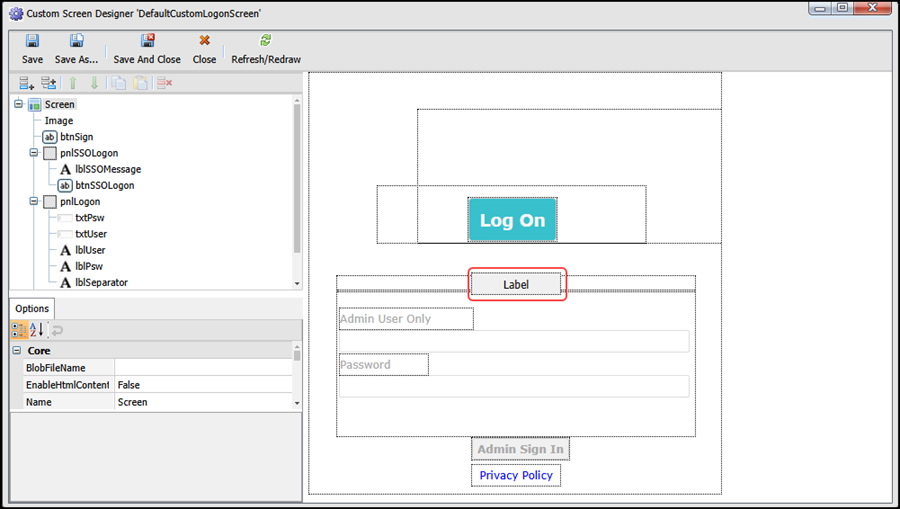

This displays the new label as shown:
Edit the following fields:
Text – To change the text of the label
Width – To change the width of the label
X, Y – To change the x and y coordinates of the label

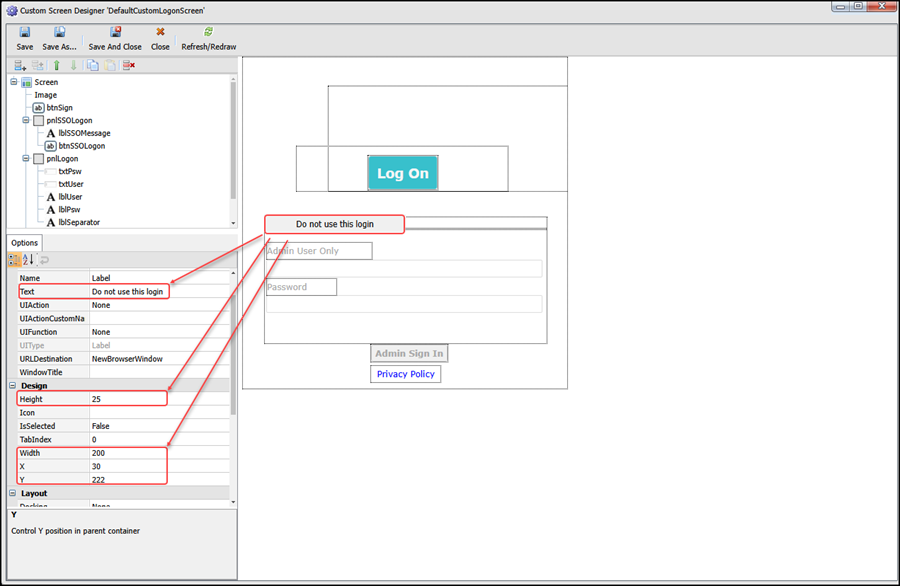

This displays the updated label as shown:

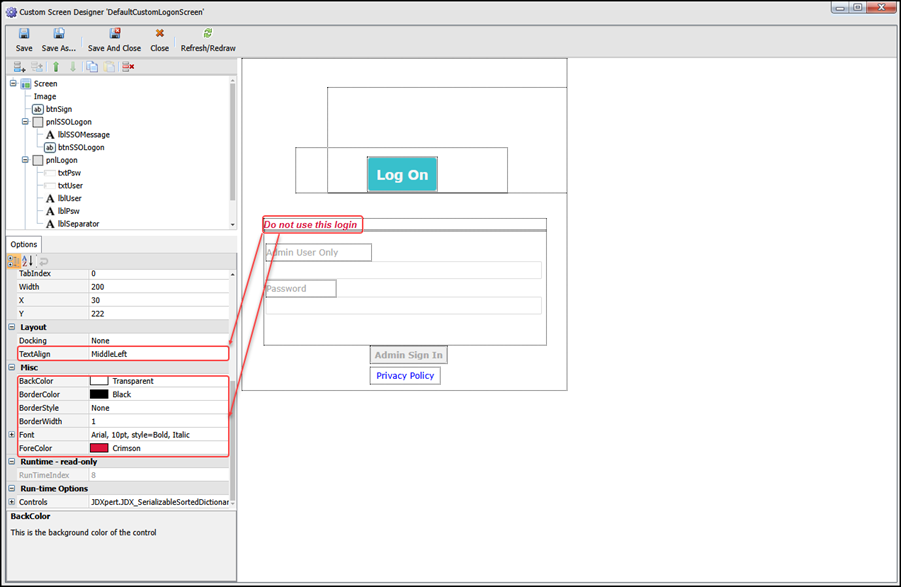

Edit the alignment and color settings as shown:
Click Save and Close.

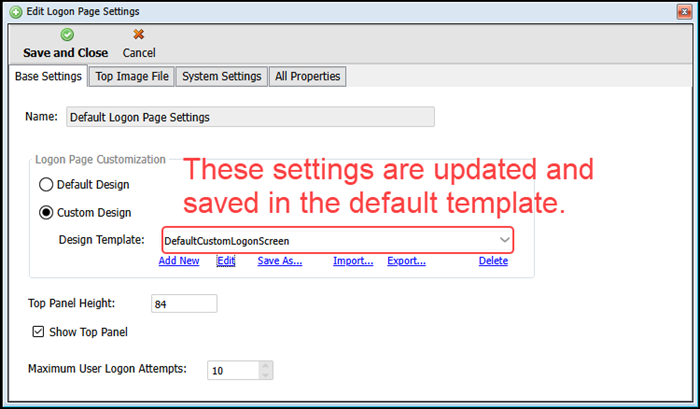

This displays the following screen:
These settings are updated and saved in the default template.
Click Save and Close.
To save the settings in the new template
If you want to keep the default template unchanged, create a new one and save your settings there.

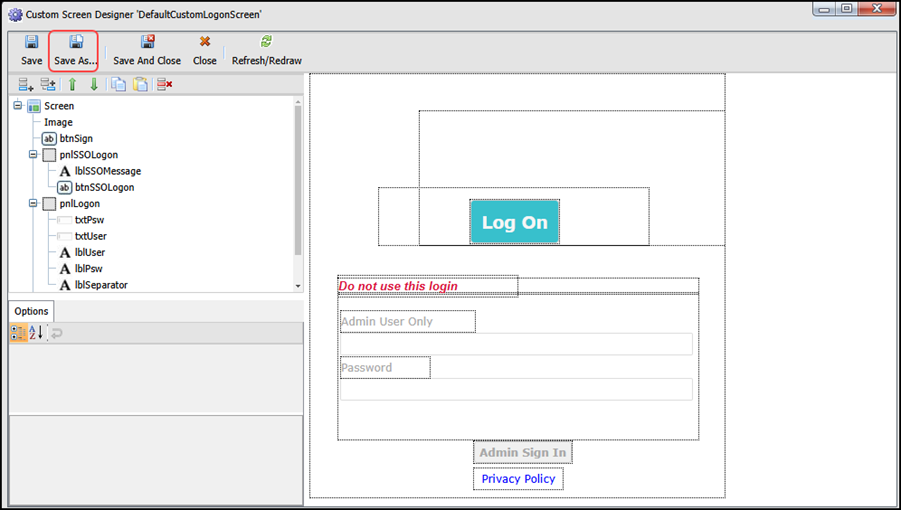

Click Save As.

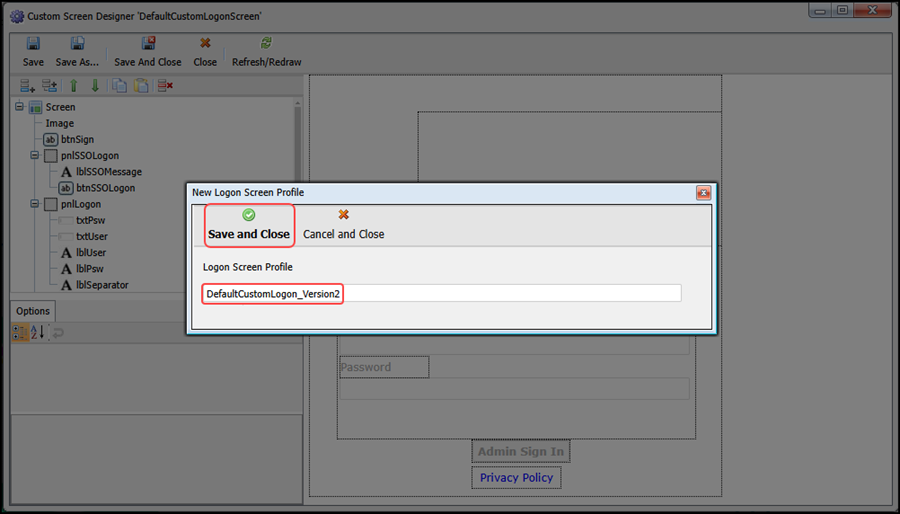

Enter the new template name in dialog box, and click Save and Close.
Click Save and Close.

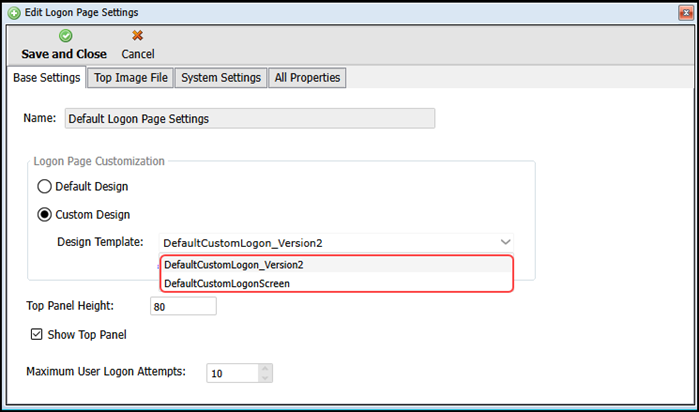

The new template is displayed in the list as shown:
