Administrators can configure the elements displayed in the organizational chart.
To configure the elements in the organization chart
1. Navigate to the Organization Chart screen.
For information on navigating to this screen, refer to the article, “Viewing the Organizational Chart.”
2. Click Settings.
This displays the Edit Organization Chart Settings screen:

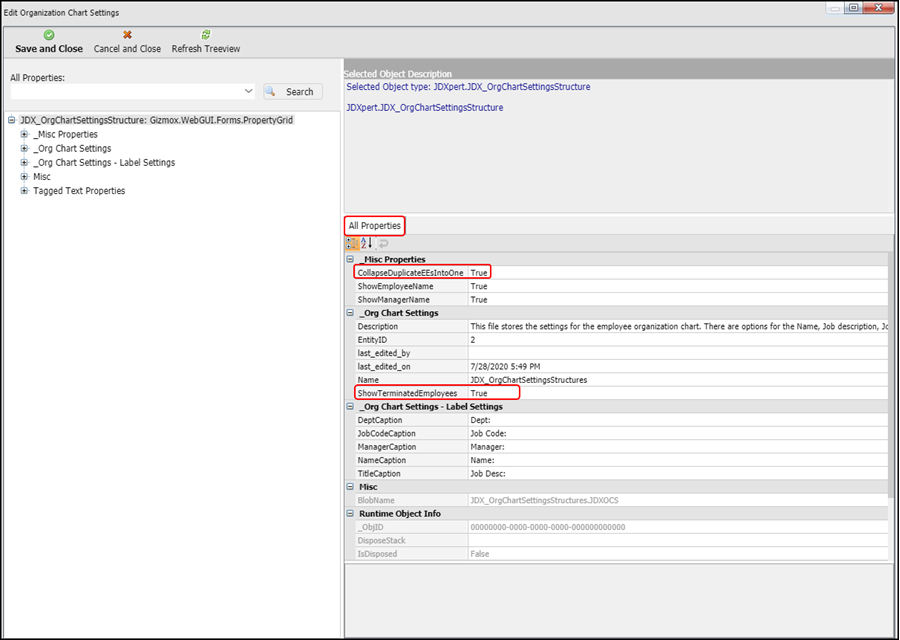

3. Set the value of the following properties to True in the All Properties pane.
CollapseDuplicateEEsIntoOne – If you wish to show multiple employees in the job description in a single card
ShowTerminatedEmployees – If you wish to show the terminated employees

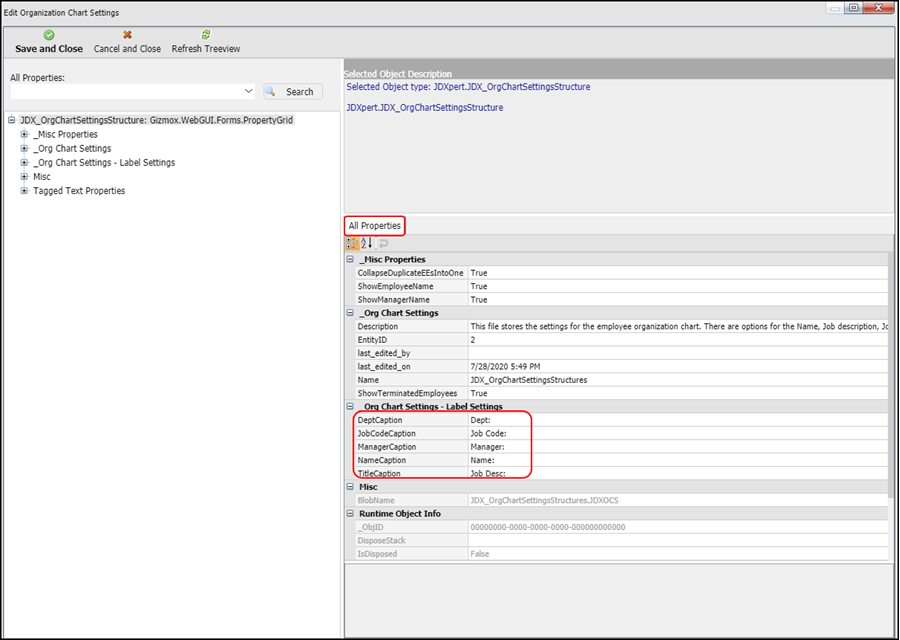

4. Edit the captions for the following elements:
DeptCaption
JobCodeCaption
ManagerCaption
NameCaption
TitleCaption

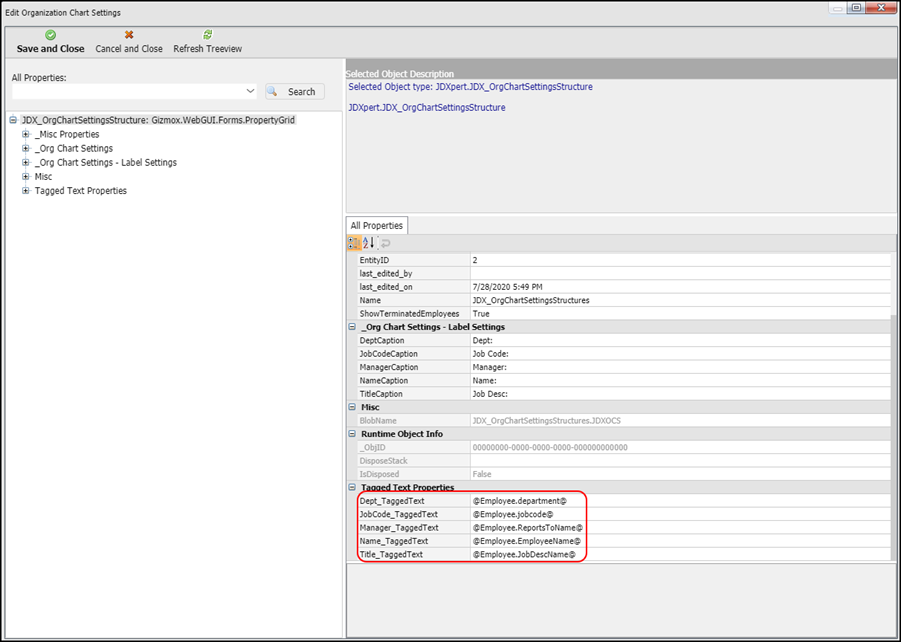

5. Set the values for the following entries:
Dept_TaggedText – To display the department
JobCode_TaggedText – To display the job code
Manager_TaggedText – To display the manager name
Name_TaggedText – To display your name
Title_TaggedText – To display the job title
6. Click Save and Close.
7. Click x to close the screen.
